Long-Gun Rear Adjustable Fiber Optic Sight - BAR08F – Fusion Firearms

About this product

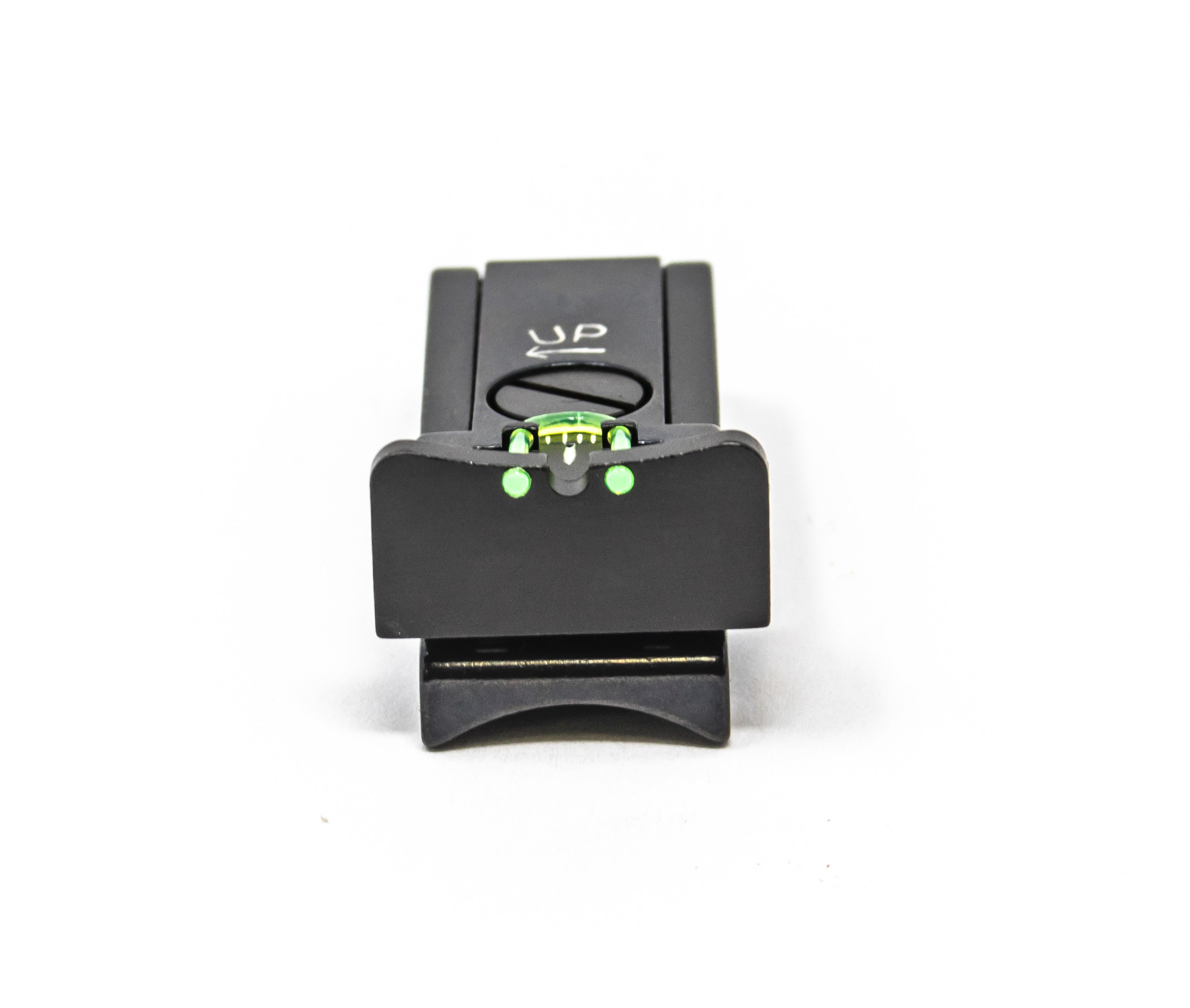

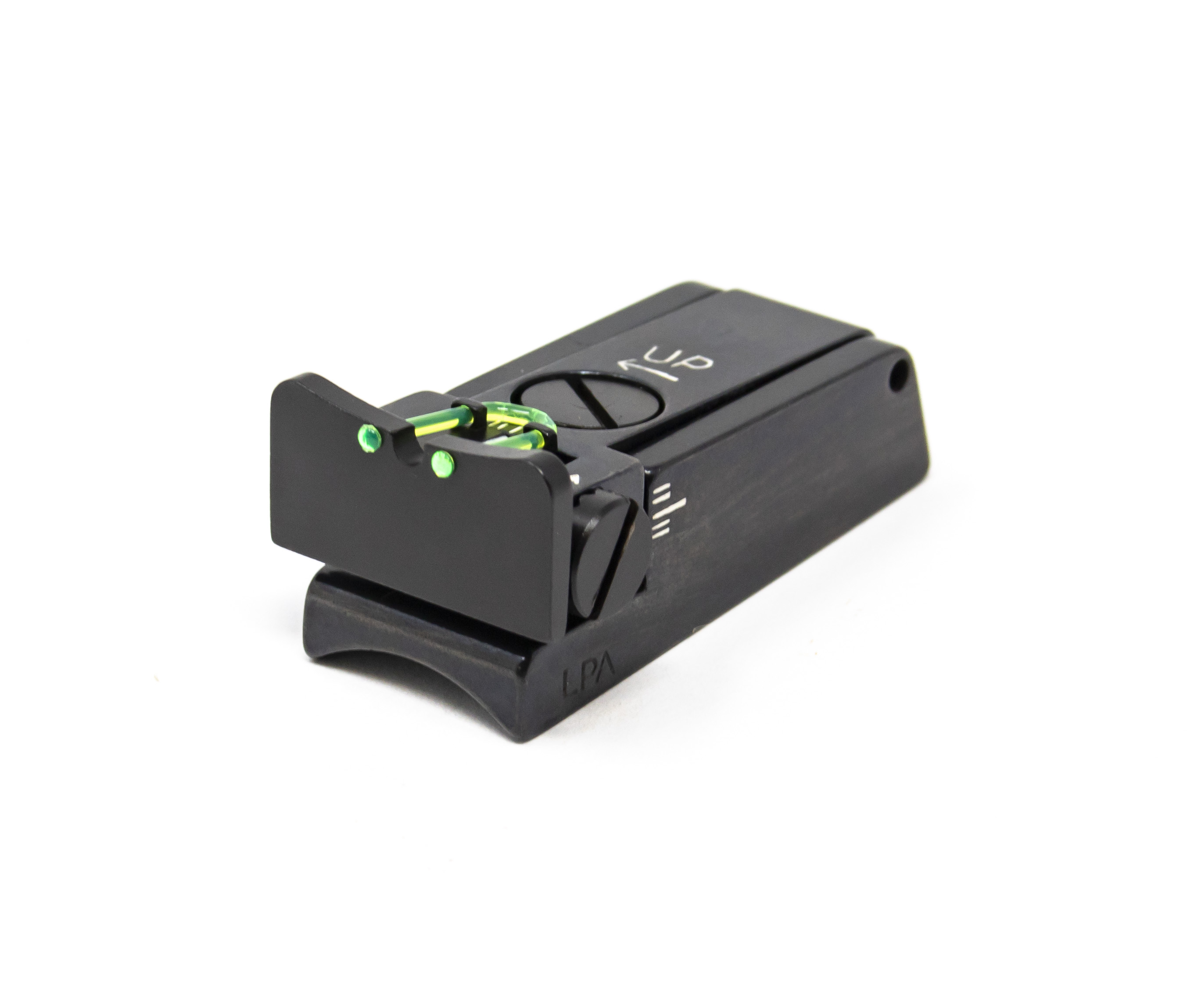

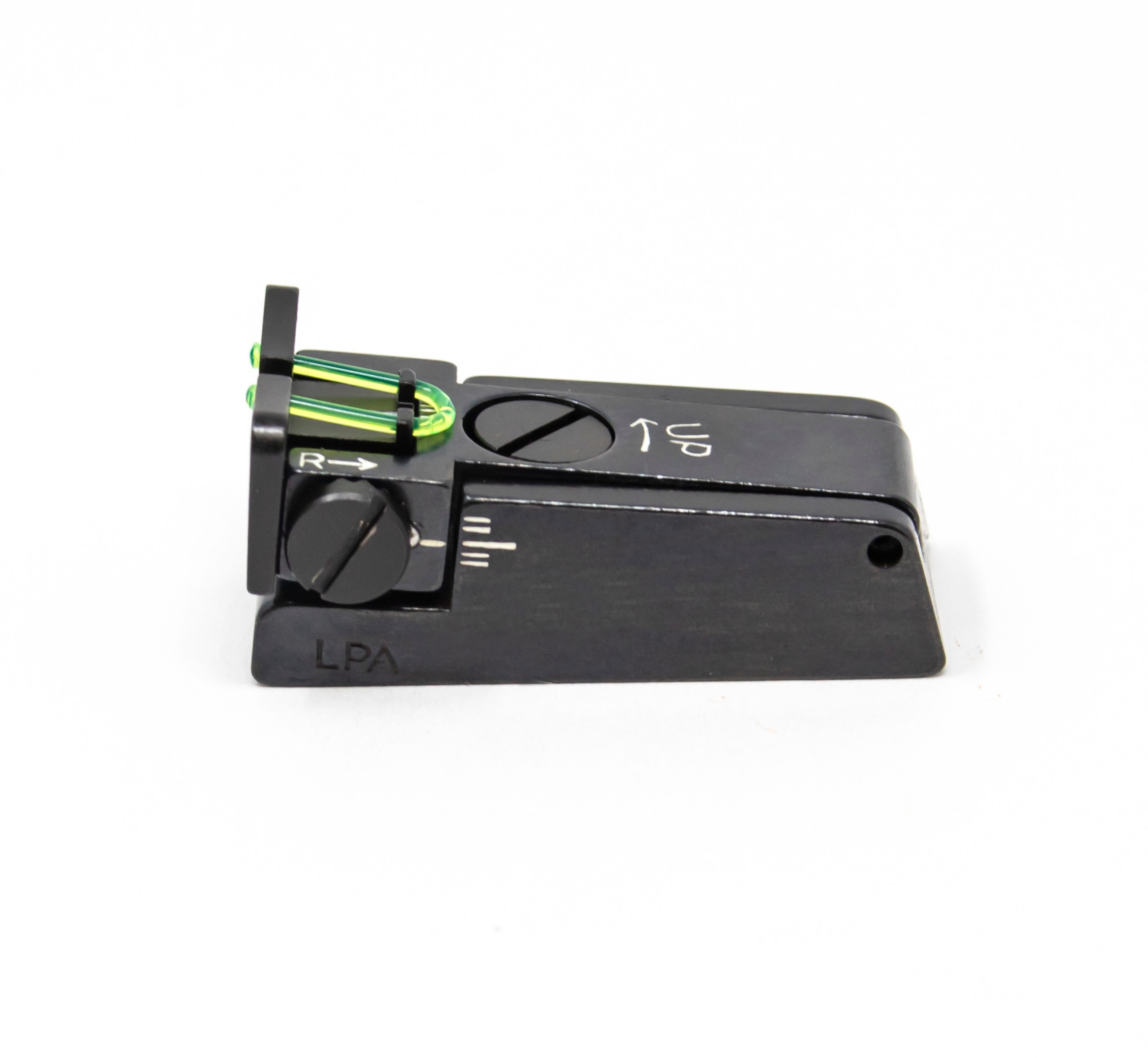

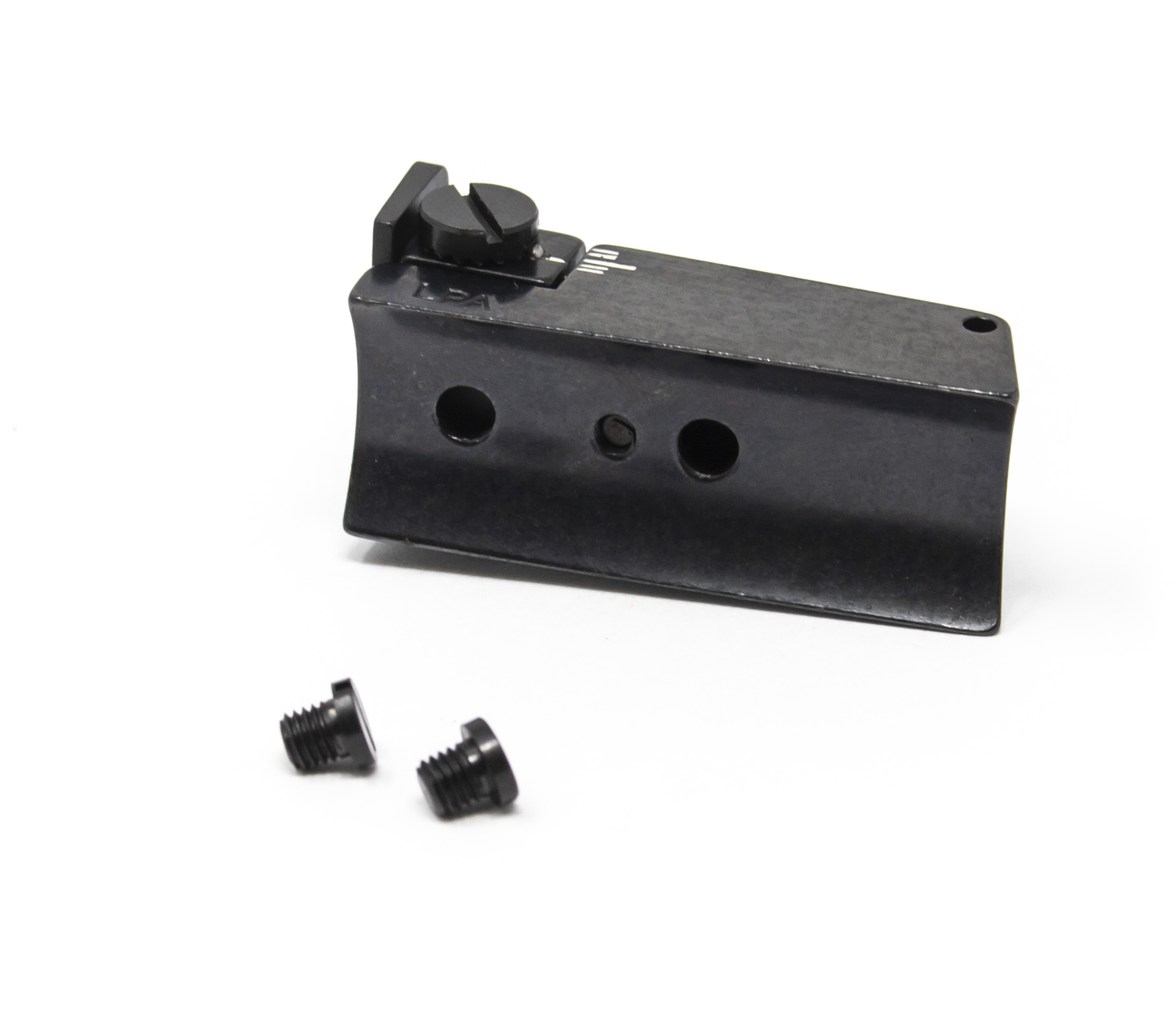

LPA Rear Sight Model: Bar-08F, Fiber Optic Black Target Blade, fully adjustable sight assembly for Long-Guns. This sight works with may OEM standard shotgun and rifle sights for direct mounting on the receiver or barrel. This is a high precision fully adjustable sight made for use on Rifle / Shotgun barrels and/or mounting on the receiver. Two supplied 6-48 gun screws are needed to secure the sight assembly to the receiver / action or barrel. This is a high quality sight assembly made of all steel construction. Fully adjustable, micro ratchet adjustments and white line graduations for precision movements.

Measurements:
• Length: 2.200"
• Base Width: .585"
• Height: .500"
• Blade Height: .410"
• Blade Width: .790"
• Notch Width: .085"
• Retaining screw clearance holes in base are .140" diameter and center to center is .562(9/16)"
